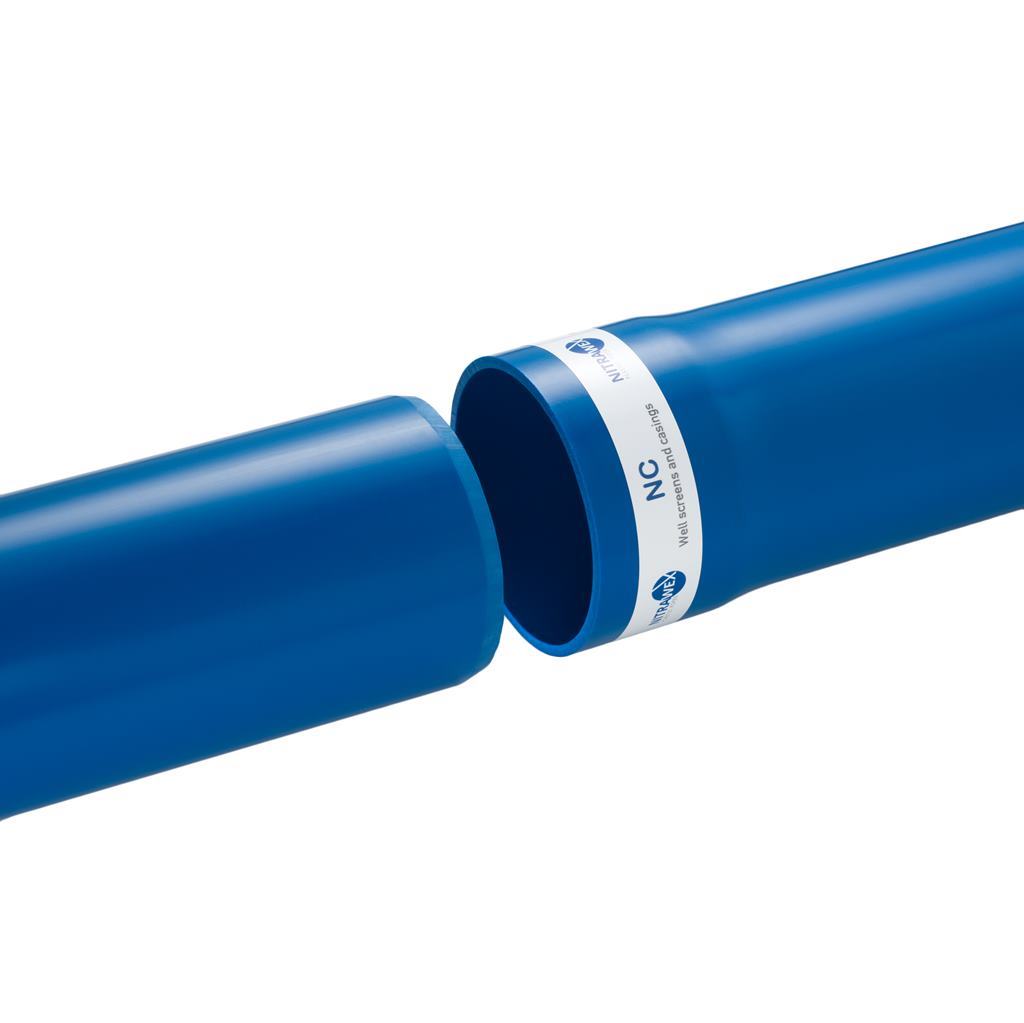

NC WELL SCREENS AND CASINGS
The well pipes produced by our company are certified for drinking water. The PVC mixture was developed with great emphasis placed on the quality of the final product. Well screens and casings are rust and age resistant. They are very easily to handle. PVC-U pipes are suitable for conveyance of most aggressive liquids. High chemical and mechanical resistance. Pipes are available in standardized wall lengths and thicknesses. Pipes are available as solid wall and filter pipes.
Areas of use
- Wells for the drawing of drinking water
- Wells for the drawing of industrial water
- Exploration and monitoring bore holes.
NC-series parameters
Diameters: 115 - 200 mm
Wall thickness: 3.0 - 6.0 mm
Standardized lengths: 4,000 mm
Joint: Socket joint
Sealing: no
Slots: in accordance with company standards
Name |
Type of pipe |
Length |
Weight* |
Unit pack |
---|---|---|---|---|
NC d x s |
[mm] |
[kg/pc] |
[number of pcs] |
|
NC 115 x 5,0 |
Casing |
4000 |
11,20 |
77 |
NC 115 x 5,0 |
Screen |
4000 |
11,20 |
77 |
NC 125 x 3,0 |
Casing |
4000 |
7,40 |
60 |
NC 125 x 3,0 |
Screen |
4000 |
7,40 |
60 |
NC 125 x 5,0 |
Casing |
4000 |
12,15 |
60 |
NC 125 x 5,0 |
Screen |
4000 |
12,15 |
60 |
NC 140 x 4,1 |
Casing |
4000 |
11,20 |
45 |
NC 140 x 4,1 |
Screen |
4000 |
11,20 |
45 |
NC 140 x 5,2 |
Casing |
4000 |
14,15 |
45 |
NC 140 x 5,2 |
Screen |
4000 |
14,15 |
45 |
NC 160 x 4,0 |
Casing |
4000 |
12,50 |
33 |
NC 160 x 4,0 |
Screen |
4000 |
12,50 |
33 |
NC 160 x 6,0 |
Casing |
4000 |
18,60 |
33 |
NC 160 x 6,0 |
Screen |
4000 |
18,60 |
33 |
NC 200 x 4,5 |
Casing |
4000 |
17,55 |
20 |
NC 200 x 4,5 |
Screen |
4000 |
17,55 |
20 |
NC 200 x 6,0 |
Casing |
4000 |
23,25 |
20 |
NC 200 x 6,0 |
Screen |
4000 |
23,25 |
20 |
*For screens, weights are indicated prior to perforation
